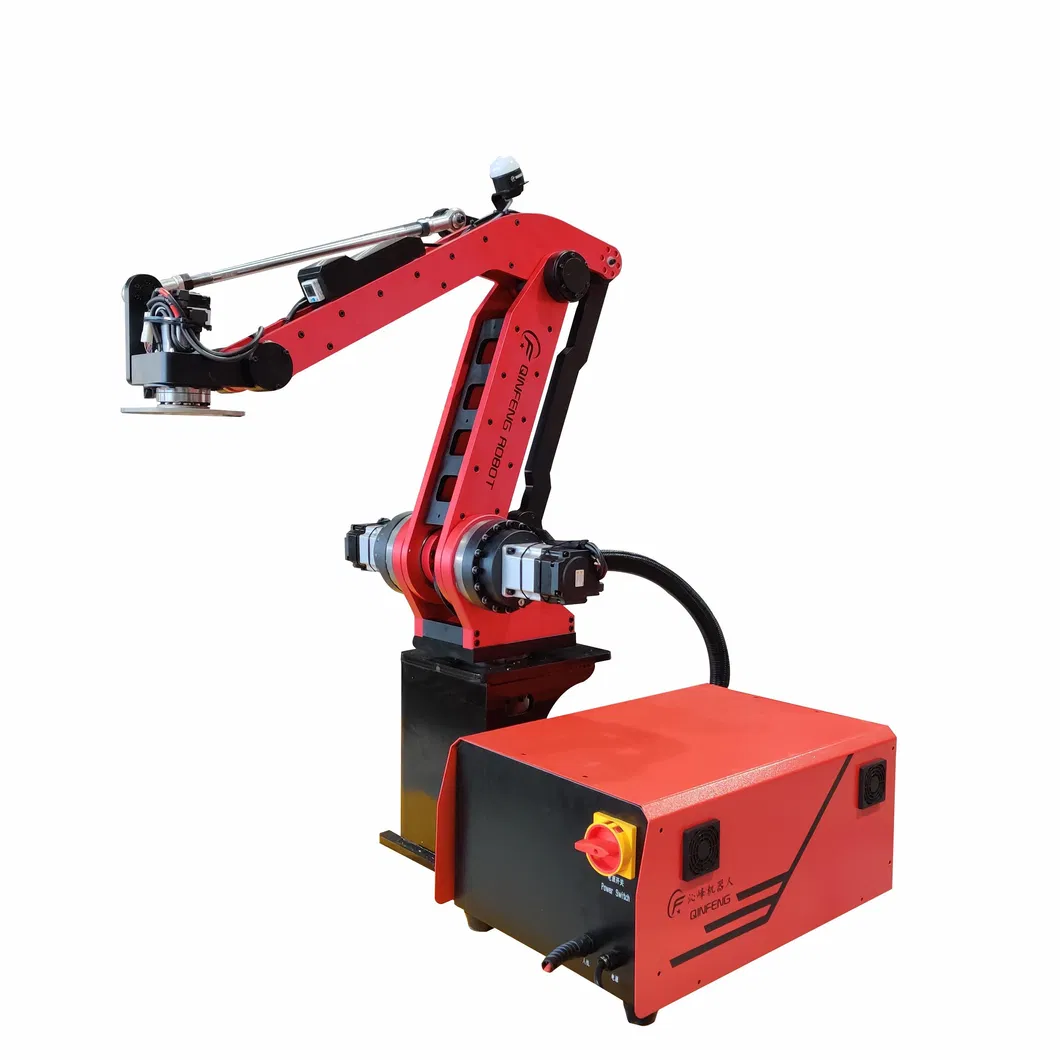

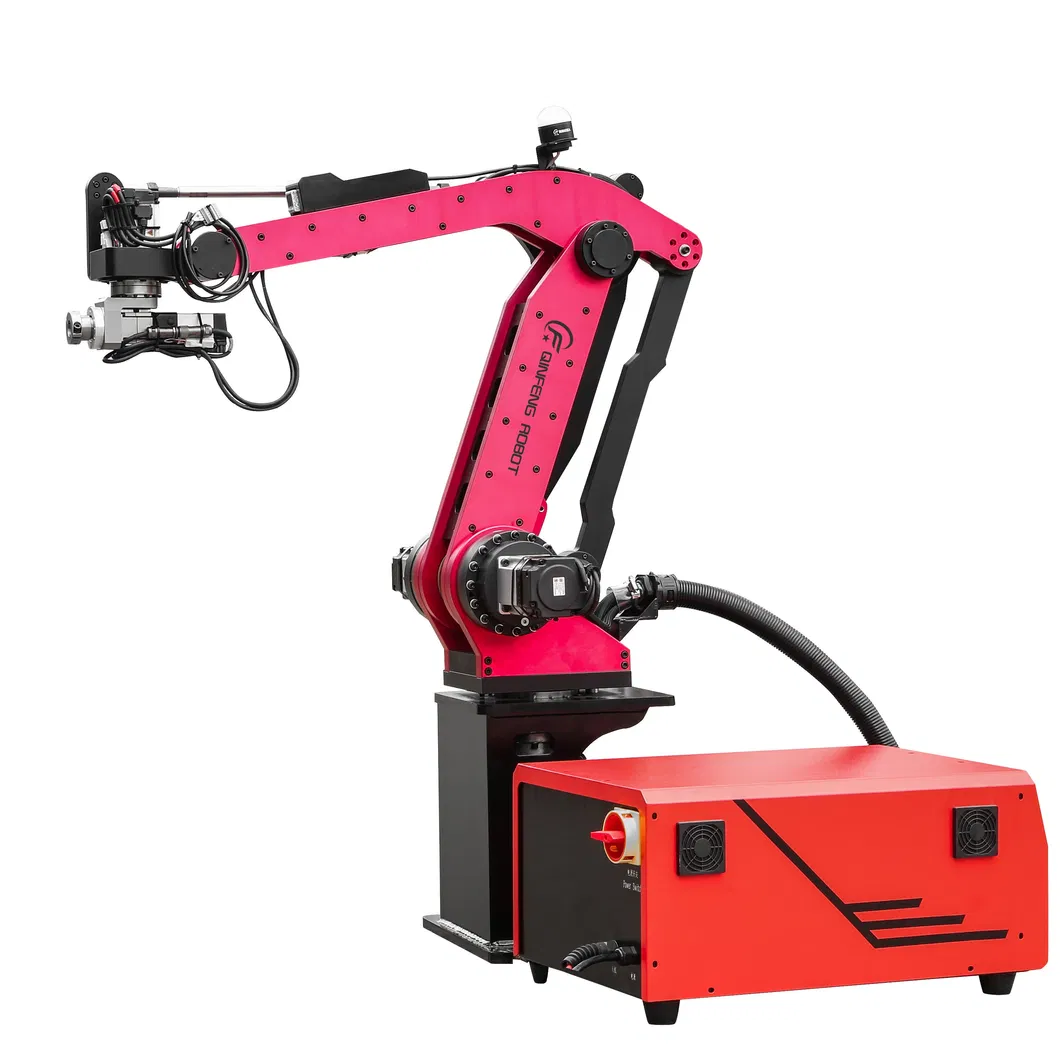

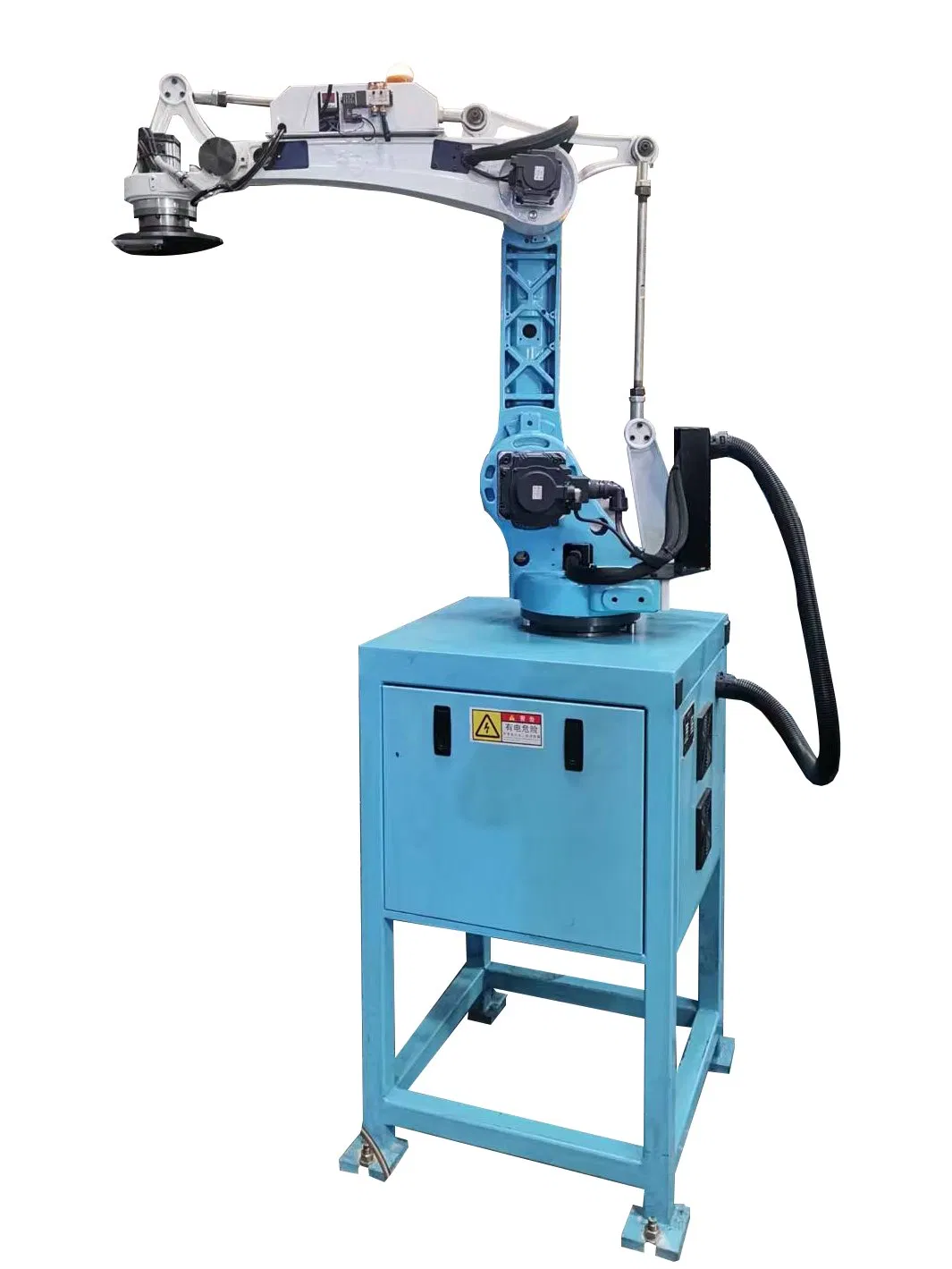

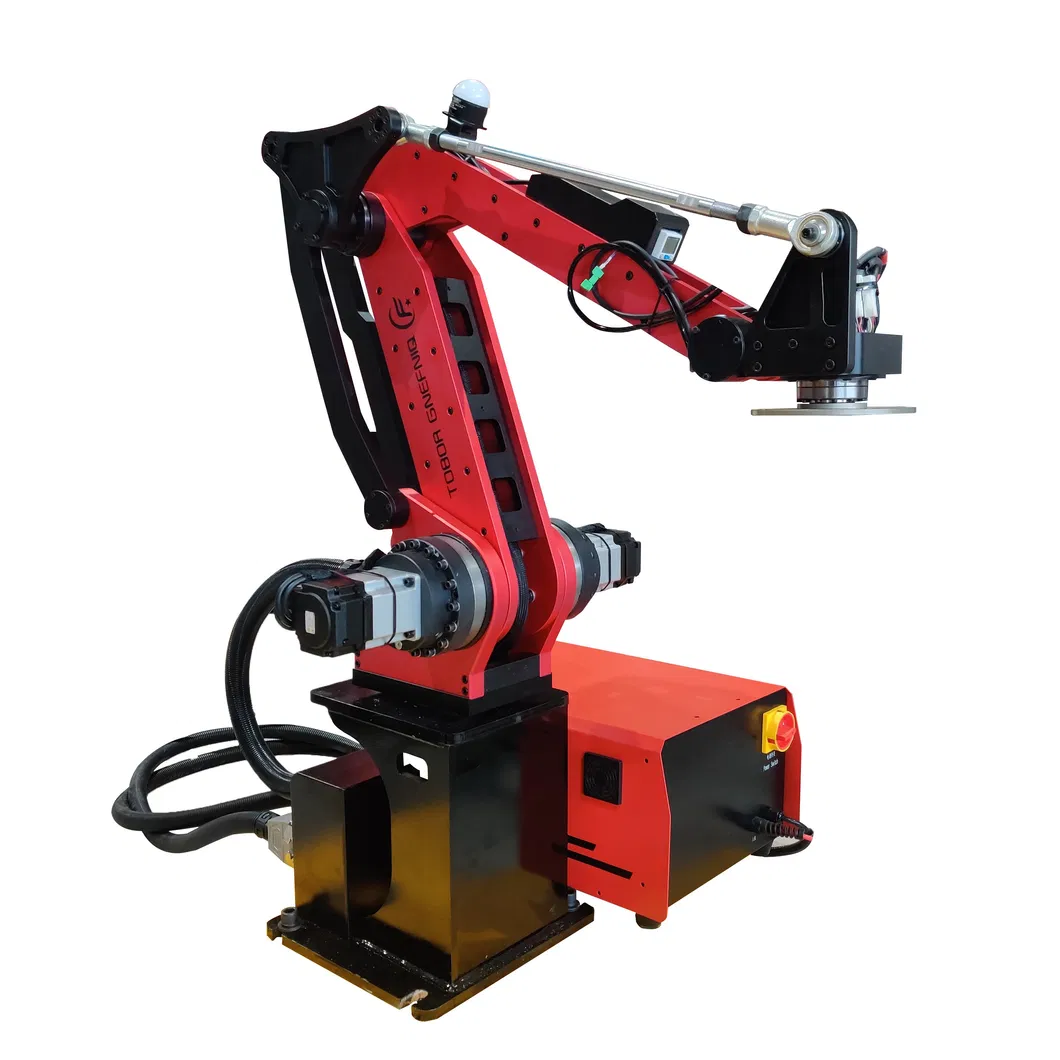

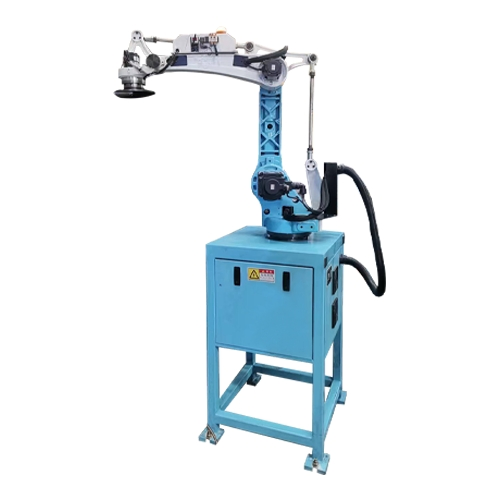

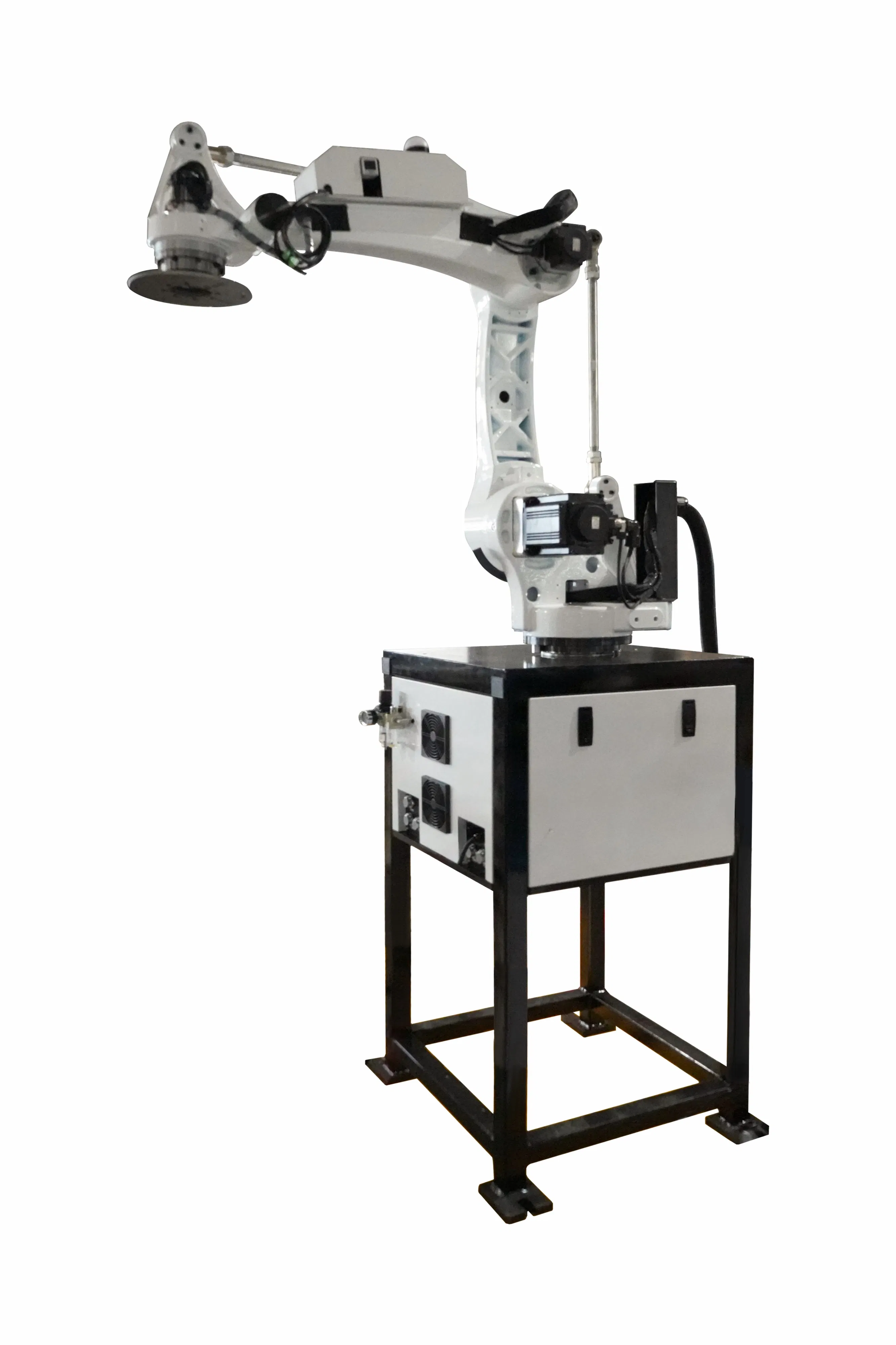

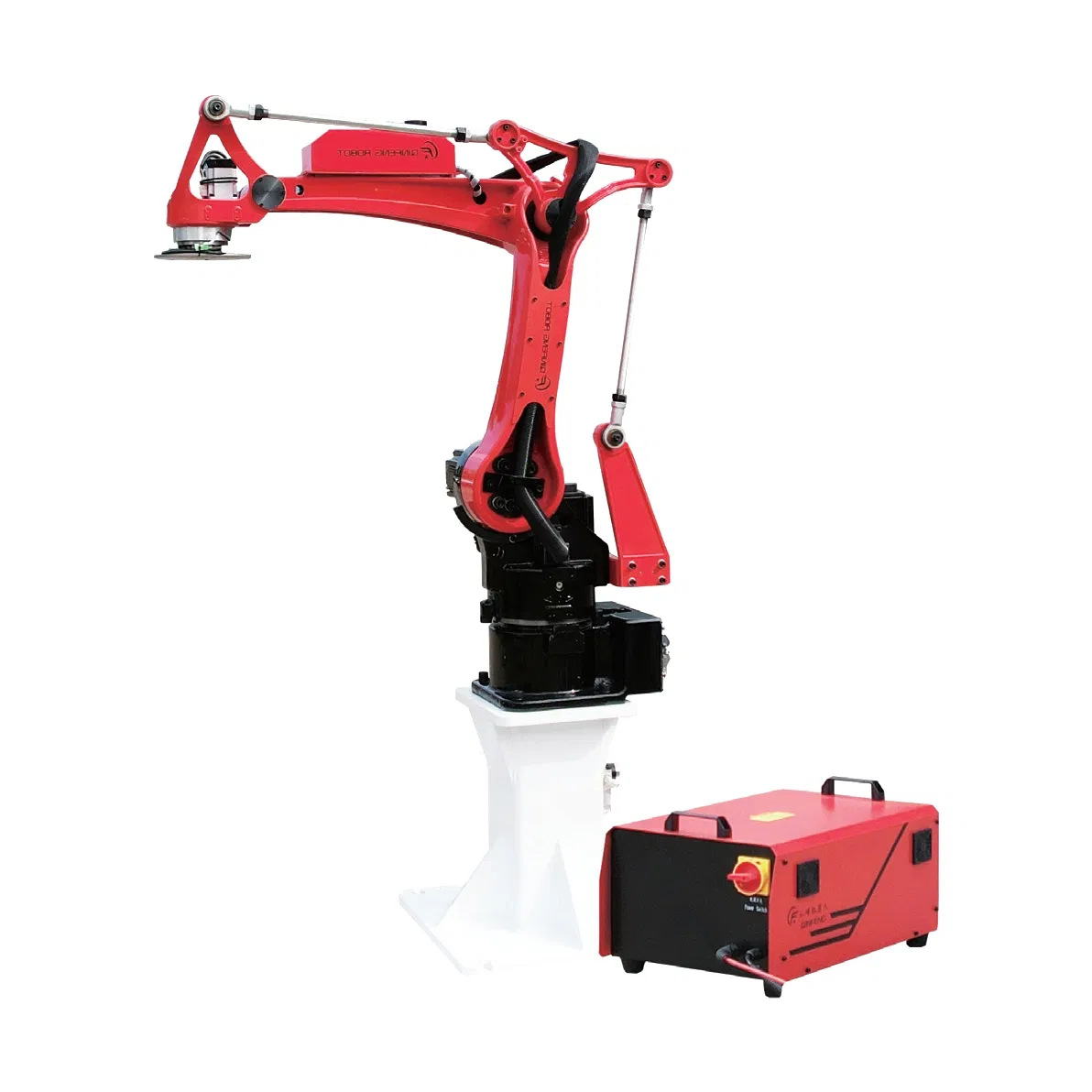

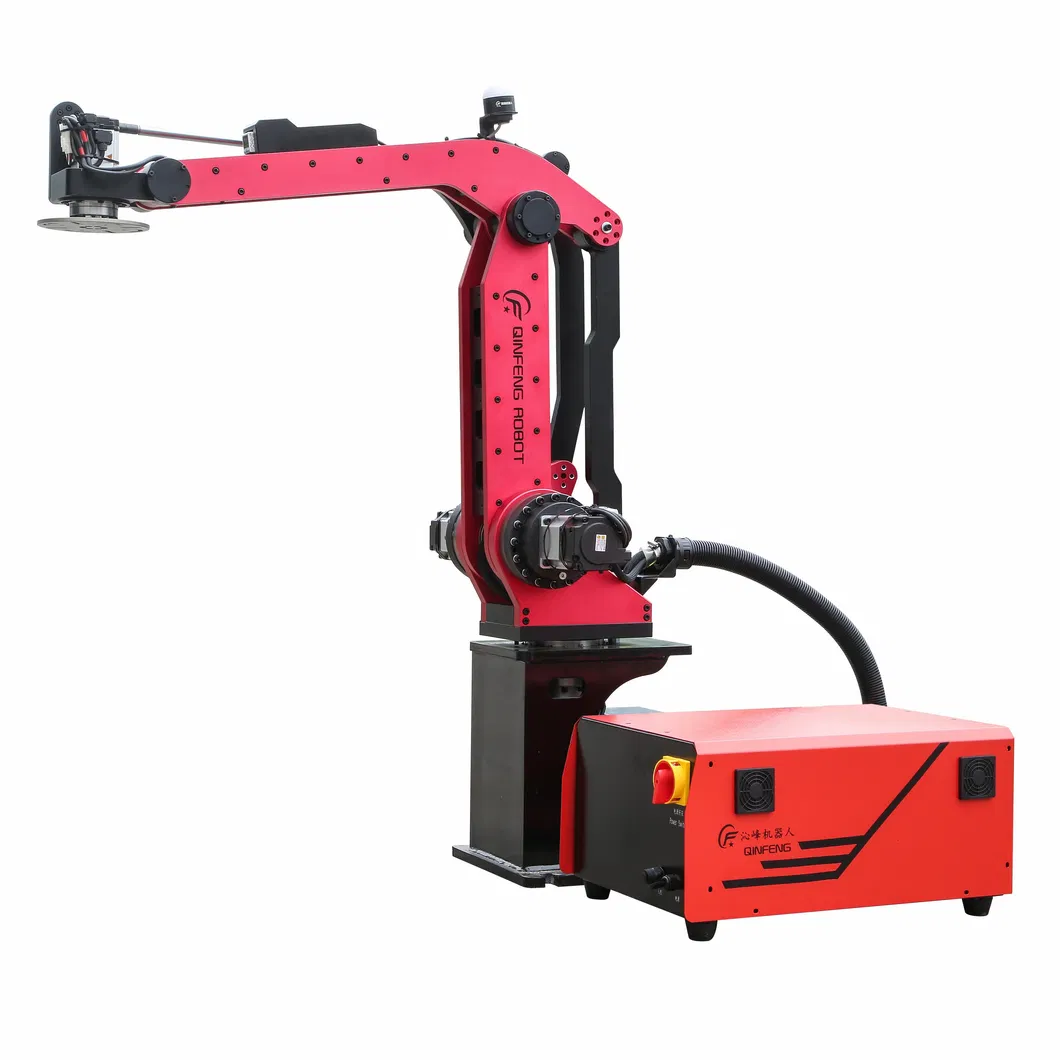

Quality Factory Joint Manipulator Industrial Robotic Arms for Welding Work

1 / 5

Quality Factory Joint Manipulator Industrial Robotic Arms for Welding Work

Customization:	Available
After-sales Service:	Available
Warranty:	12 Months

Send Inquiry

Product Description

Basic Info.

Model NO.

QF-MD-1400-4

Type

General Punching Machine

Punch Shape

Open Punch

Slider Movement

Single Action

Automatic Grade

Automatic

Power Source

Electric

Max. Radius

1400mm

Grab Weight

≤10kg

Precision

±0.1mm

Robot Weight

275kg

Product Description

⚙️

Effectively solve the picking and placing of materials within 100KG, the arm span can reach 3.1m, and the efficiency can reach 8-20 times/min (depending on the equipment style and site conditions). With path programs such as material palletizing and depalletizing, it is suitable for the stacking, depalletizing and handling of common materials.

⚡

High flexibility, all-round, Multi-angle realization of various stamping actions: turnover, Turn over and play scrap, side mount, slanted or stacked, etc. Suitable for progressive dies, single die and transfer dies. All axes adopt high-performance absolute servo system with power-off position memory.

Core Highlights

Suitable for press machines with a tonnage of 350T and below.
Open programmable technology supports motion track editing and flexible control.
High-precision core accessories with failure rate less than 1‰.
Standardized products with customizable grippers (suction cup, pneumatic, magnetic).
Long service life up to 8-10 years with proper maintenance.

Technical Parameters

Parameter	Unit	Index
Voltage	V	AC 380
Power	KW	4
Max. working radius	mm	1400
Max. precision repeatability	mm	±0.1
Payload	kg	≤10
J1 Axis Movement	degree	±160
J2 Axis Movement	degree	+75, -35
J3 Axis Movement	degree	+75, -25
Robot weight	kg	≈275

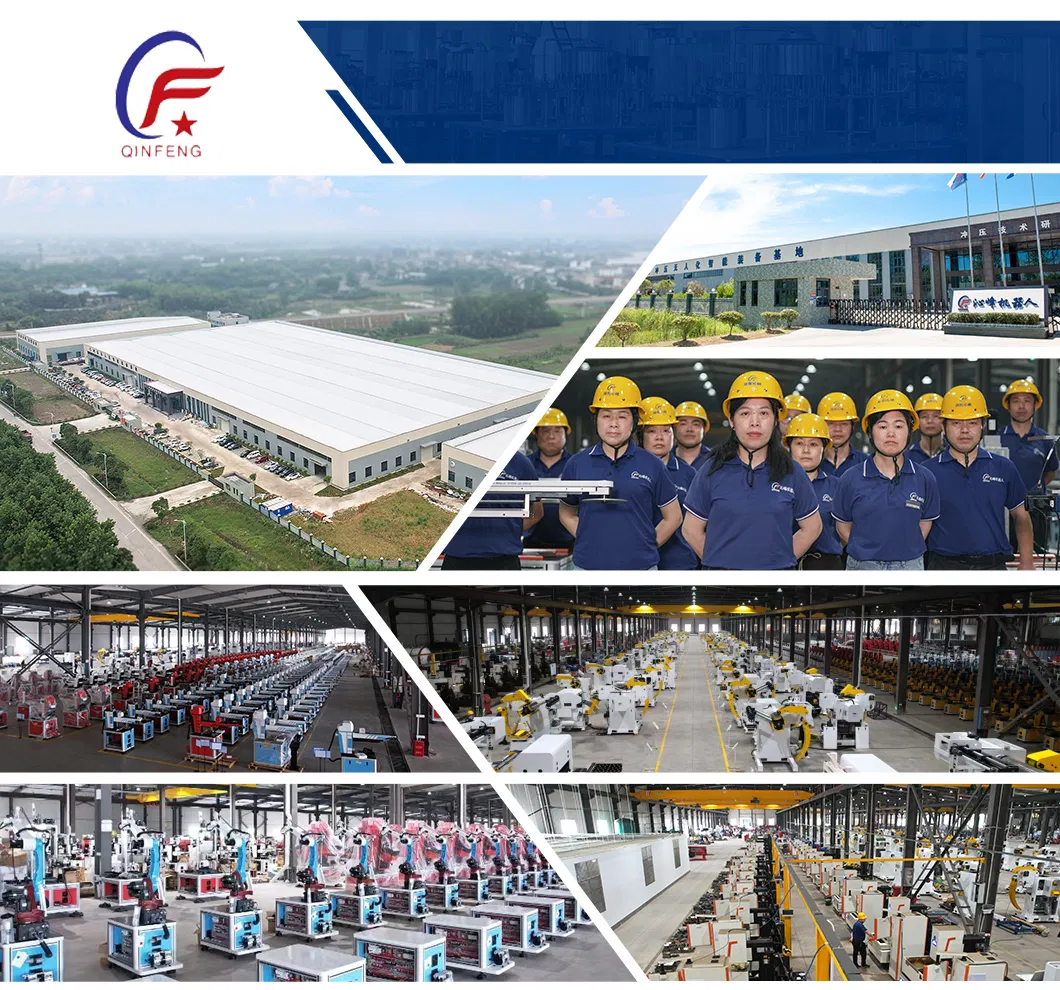

A leading manufacturer and provider of comprehensive stamping automation solutions, dedicated to enhancing manufacturing efficiency and precision. Products include Stamping Manipulators, 3-in-1 Decoiler-Straightener-Feeders, Destackers, and Transfer Manipulators. Dedicated to the stamping automation industry for 15 years, we focus on honest operation and excellent quality.

Frequently Asked Questions

Q1: Are you a factory or a trading company? We are a professional manufacturing factory specializing in stamping automation equipment.

Q2: What types of automation equipment do you provide? We provide a one-stop solution including stamping manipulators, robots, 3-in-1 decoiler straightener feeders, destackers, and transfer systems.

Q3: Is the machinery standard or can it be customized? Both. We offer standard models and can also customize equipment to meet specific production needs and onsite conditions.

Q4: How do you ensure the quality of the machines? Quality is our priority. All parts are checked before installation, and every machine undergoes rigorous testing before shipment.

Q5: What is the warranty period for your equipment? The standard warranty is one year. With proper maintenance, our machines are designed to operate for more than 10 years.

Q6: Do you offer after-sales and technical support? Yes, we provide support through overseas partners for onsite service, as well as remote technical support via email and video calls.
